PackTech.
2.3

Conductive Type D Jumbo Bag

Antistatic protection with no earthing step to forget

Sizes
Made to your safe working load and fill volume.
Materials

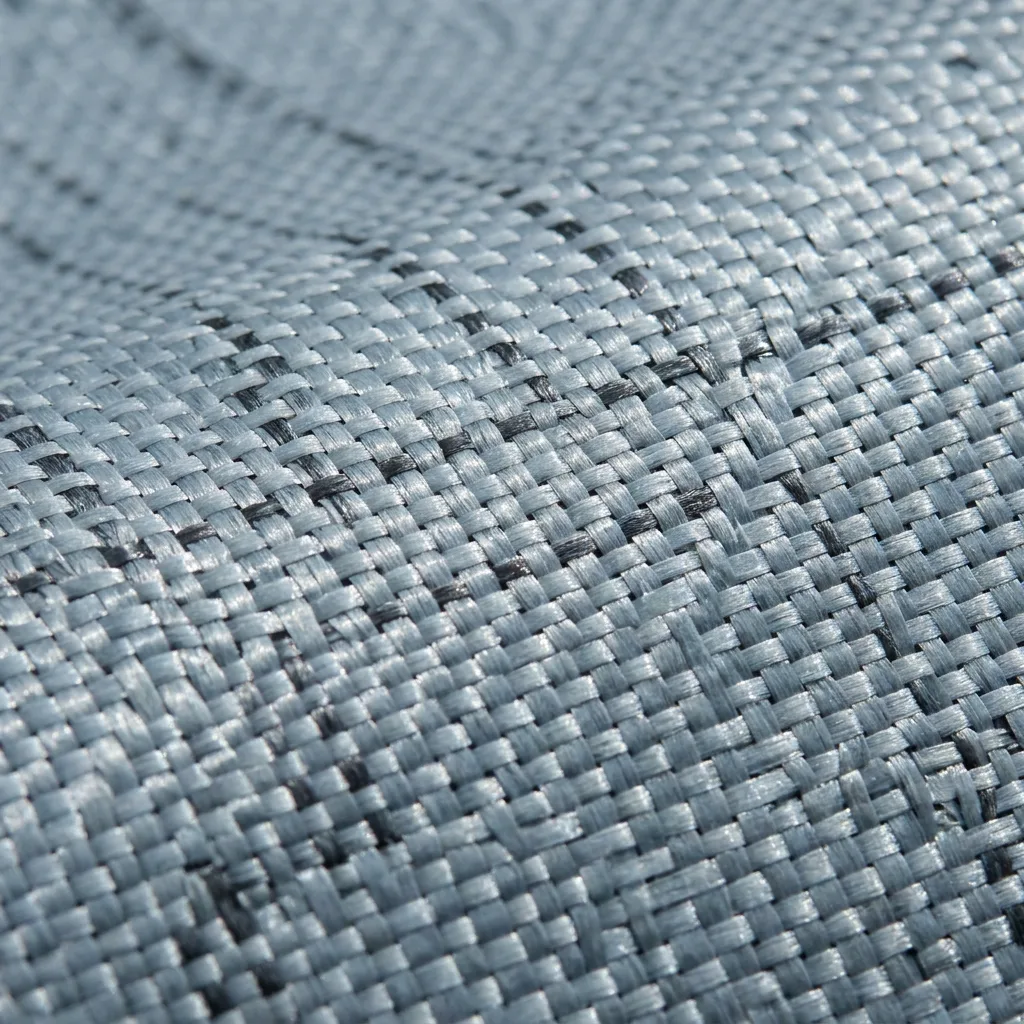

Antistatic woven polypropylene fabric.
  • Sample supplied for trial fitment
  • Material specified against your product data
  • Made to your drawing or measured container
The problem it prevents

Can you guarantee every person who handles this bag, anywhere, will earth it correctly every time?

Your risk is not in your own plant. It is downstream. Once the bag leaves, nobody can promise the earthing step will be followed.

For exporters this is the difference between a controlled risk and an uncontrolled one. Type D removes the dependence on the operator completely, because there is no earthing step that can be forgotten.

What it is

A Type D antistatic FIBC carries static charge away without any grounding connection at all. The fabric is engineered to stop the kind of sparking that causes ignition.

Type D is the better choice where bags are handled by more than one party, at sites you do not control, or in processes where a grounding point cannot be guaranteed at every transfer.

Key features

  • No grounding connection needed in use
  • Removes operator dependence and the risk of a missed earthing step
  • Suitable for flammable and combustible atmospheres
  • Made from antistatic fabric to specification

Specification

Materials
Antistatic woven polypropylene fabric.
Sizes
Made to your safe working load and fill volume.
Applications
Flammable powders, solvent-rich environments, and multi-site or export handling chains.
Where it is used
Exporters, contract manufacturers, and any operation whose bags will be opened at a site they do not control.

How we build it

Our position is that operator-independent safety is worth paying for. We would rather quote Type D and explain the reason than supply a Type C bag whose protection depends on a step nobody can supervise once the bag has left your gate.

Built to your specification

Every one of these can be changed for your application, and a sample is supplied for trial fitment before bulk production.

  • Fabric grade and safe working load
  • Loop arrangement
  • Liner fitment
  • Discharge arrangement
  • Printing
