Conductive Type D Jumbo Bag
Antistatic protection with no earthing step to forget
2.3
2.2
Conductive Type C Jumbo Bag
Groundable FIBC for a controlled filling station
The problem it prevents
Type C or Type D? Getting that answer wrong is a safety gap, not a purchase error.
Type C bags only work if they are grounded. Where a reliable grounding connection cannot be guaranteed at every point in your process, a Type D bag is the safer choice.
If you already know you need static control, the real question is which type suits your site. We will answer that honestly, including telling you when Type C is the wrong choice.
Type C works only when it is earthed. The bonding point is built in.
What it is

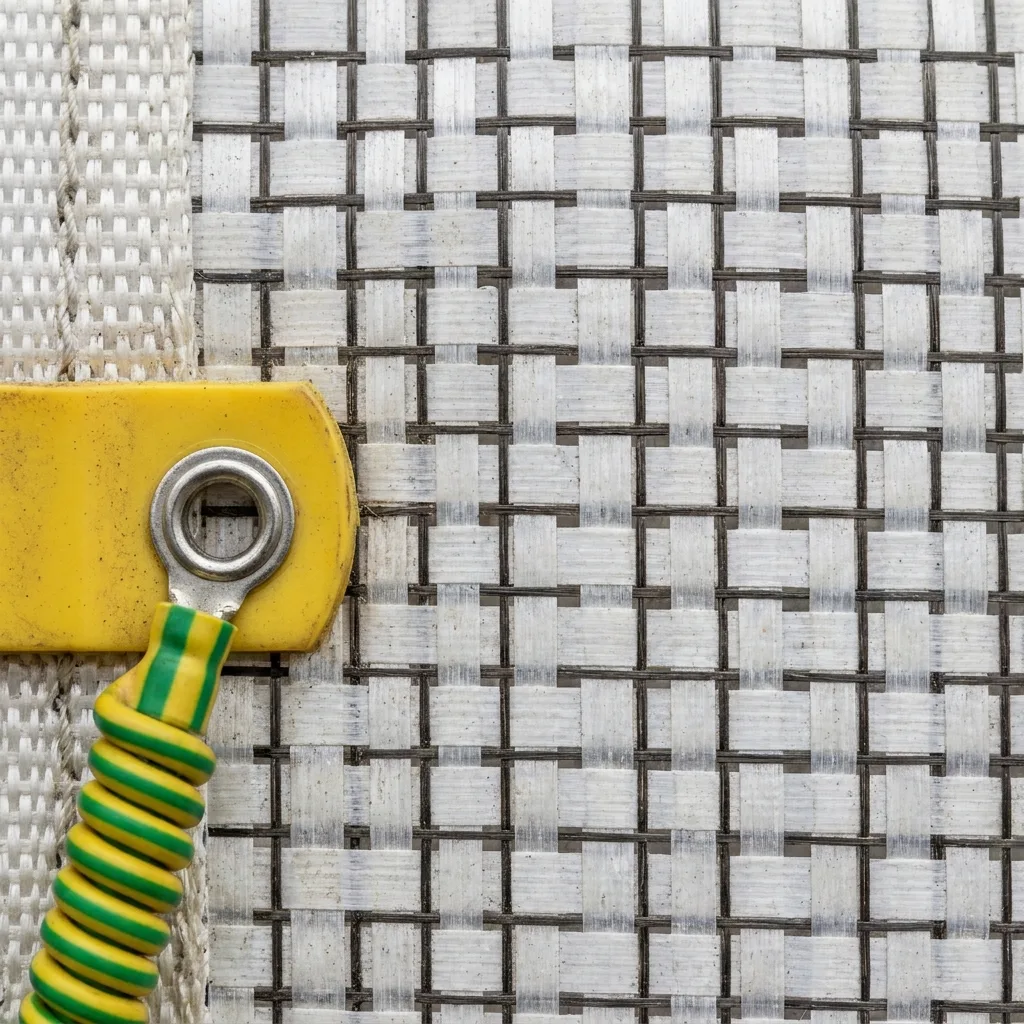

A Type C, or groundable, FIBC is woven with conductive threads running through the fabric and joined to each other. When the bag is properly connected to earth during filling and discharge, the static charge created by the flow of product is carried away safely.
Key features
- Conductive threads joined together throughout the fabric
- Safe handling of flammable powders and combustible dusts
- Suitable for flammable vapour and dust atmospheres when grounded
- Grounding tab clearly marked
Specification
Materials
Woven polypropylene with a conductive thread grid.
Sizes
Made to your safe working load and fill volume.
Applications
Flammable powders, combustible dusts, and chemicals handled where solvent vapour or dust is present.
Where it is used

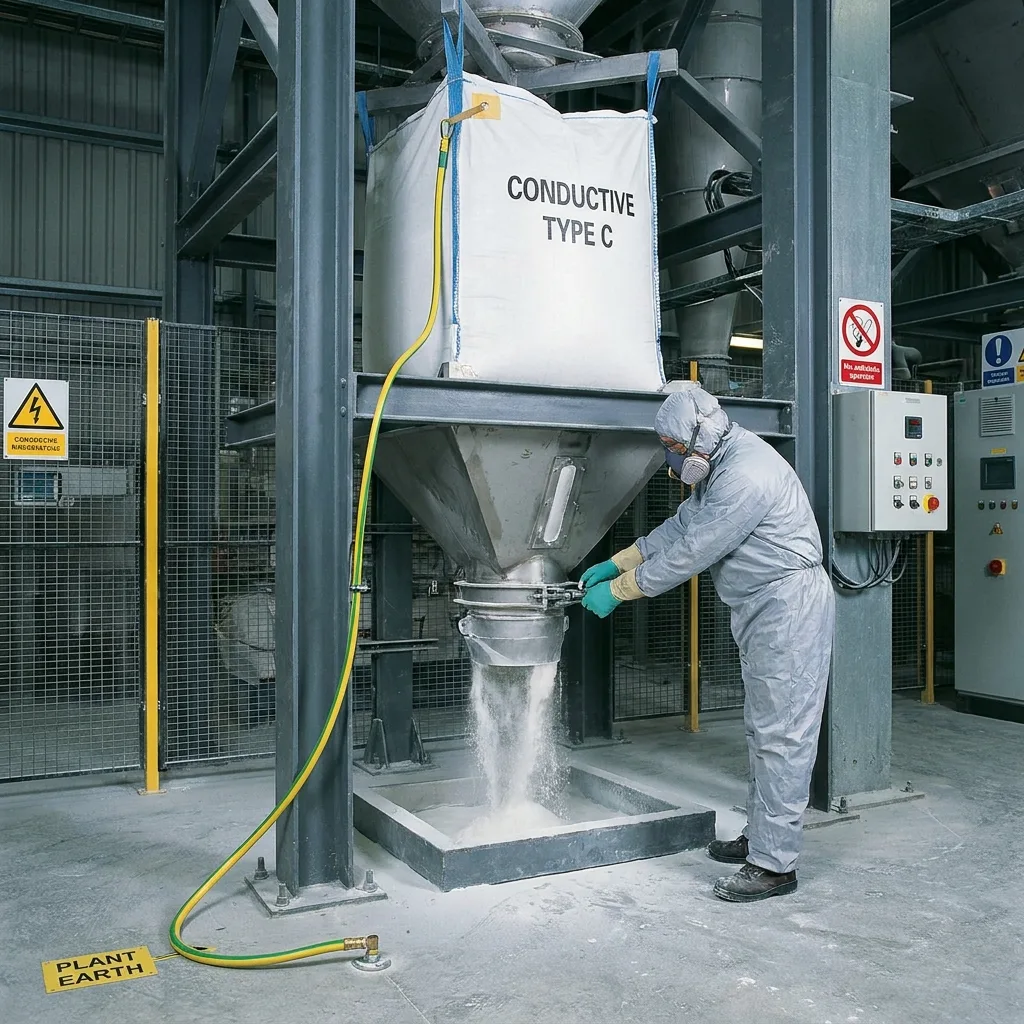

Chemical and pharmaceutical plants with a fixed, well-managed filling station where the earthing procedure is followed every time.
Category
How we build it
We advise on the choice rather than pushing whichever bag we would rather sell. Where a process cannot guarantee grounding at every transfer, we recommend Type D even though it changes the order. That advice is why customers come back to us.
Built to your specification
Every one of these can be changed for your application, and a sample is supplied for trial fitment before bulk production.
- Fabric grade and safe working load
- Loop arrangement
- Grounding tab position and type
- Liner fitment
- Printing
Send us the problem
Send the drawing, the drum, or the data sheet.
Every product we make is built to order, so the conversation starts with your specification rather than with our price list. Sample liners and trial covers are supplied for fitment before bulk production begins.
