Aluminium Barrier Drum Liner

Almost total barrier against moisture, oxygen and gas

The problem it prevents

Your real cost is not the liner. It is the rejected batch.

A catalyst or intermediate that picks up moisture in transit can be worth many times the value of the whole packaging order. The rejection happens at the destination, thousands of kilometres away, where nobody can inspect anything until it is too late.

For products that spoil on contact with moisture, oxygen or light, a plain polyethylene liner is not enough.

Aluminium barrier drum liner, filled and standing on a pallet

An aluminium layer stops what polyethylene alone lets through.

What it is

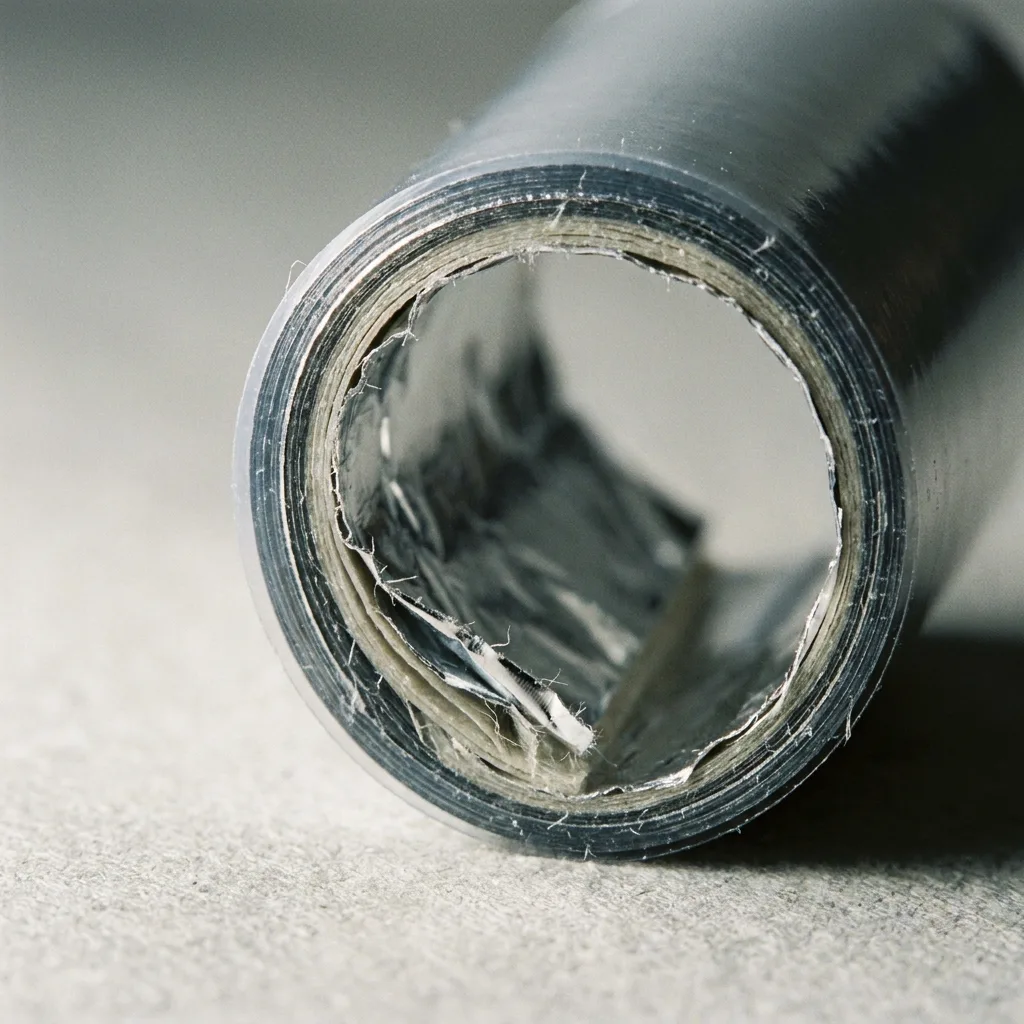

The aluminium barrier drum liner uses a layer of aluminium foil laminated between polymer layers. This gives an almost total barrier against gas and moisture, with very little passing through even at the heat-seal.

This construction is used where the product has to stay in exactly the same condition over a long storage or shipping period, and keep both its original physical form and its chemical properties.

Key features

  • High barrier against moisture, oxygen and atmospheric gases
  • Protects hygroscopic and temperature-sensitive products
  • Extends usable shelf life in transit and in storage
  • Available in 5-layer and 6-layer constructions
  • Can be combined with conductive layers where static control is also needed

Specification

Materials
Aluminium foil laminated with polyester, nylon and polyethylene layers. 5-layer and 6-layer constructions.
Sizes
6 inches to 100 inches internal diameter.
Applications
Catalysts, pharmaceutical intermediates, hygroscopic powders, specialty chemicals, moisture-sensitive additives.
Where it is used
Catalyst makers, pharmaceutical intermediate plants, specialty chemical exporters, and anyone shipping a moisture-sensitive product on a long sea route.
Category
Round Drum Liners

How we build it

Our development work has been on the seal. A barrier film is only as good as its weakest seal, and most barrier failures happen there rather than through the film. Our 5-layer and 6-layer structures are built and sealed so that permeation at the seal stays minimal, which is what makes the barrier claim real over a long voyage.

Built to your specification

Every one of these can be changed for your application, and a sample is supplied for trial fitment before bulk production.

  • Layer count
  • Foil thickness
  • Seal structure
  • Diameter and height
  • Conductive variant
  • Desiccant pocket
  • Printing

Specified in

Lubricants and Base Oils Pharmaceutical and Intermediates
